Custom 750mm PVC Temporary Construction Fencing & Vinyl Profiles | UPPERUNIONS

Premium 750mm uPVC Construction Hoarding Fence Panels Certified ASTM E84 Class A fire rating.

Upgrade your US jobsites with UPPERUNIONS’ reusable 750mm PVC temporary construction fence panels. 100% virgin vinyl, UL94 V-0 fire-rated, wind-resistant multi-chamber profiles for ultimate site safety. Get a quick wholesale quote today!

Core Market Position

In the U.S. commercial construction industry, regulatory compliance, risk mitigation, and structural safety are non-negotiable. Shandong Upper Unions New Material Co., Ltd. proudly introduces its high-performance 750mm uPVC Hoarding Fence Panels (Model: UU-260525). Engineered from premium unplasticized PVC with a robust 29.2mm thickness, this modular system is the elite, sustainable alternative to traditional timber and chain-link perimeters.

Most importantly, our system has successfully achieved the highest possible fire safety rating in the United States: ASTM E84 Class A Certification.

Key Compliance Highlight: ASTM E84 Class A Certified

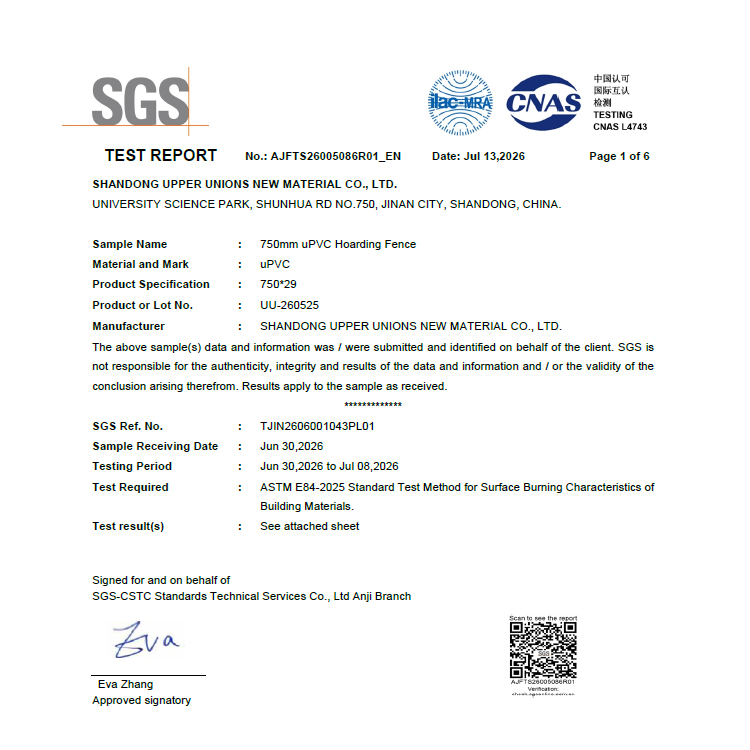

Fire safety regulations governed by the International Building Code (IBC) and the National Fire Protection Association (NFPA) impose strict limitations on materials used in high-density urban or commercial construction zones. Our panels underwent full-scale tunnel testing by SGS according to ASTM E84-2025 (Standard Test Method for Surface Burning Characteristics of Building Materials), achieving flawless metrics:

Official SGS Test Performance Data:

• Flame Spread Index (FSI): 10 (U.S. Class A Requirement: 0 – 25) — Demonstrates an exceptionally low risk of flame propagation.

• Smoke-Developed Index (SDI): 400 (U.S. Class A Requirement: 0 – 450) — Confirms strict compliance within permissible smoke density boundaries.

• Time to Ignition: Rapid self-extinguishing initiation within 24 seconds.

• Max Flame Spread Distance: Limited to only 3 feet under continuous extreme direct burner exposure.

U.S. Building Code Alignment:

• IBC Chapter 8 (Interior Finishes, Section 803): Formally meets all criteria for Class A wall and ceiling category performance.

• NFPA 101 Life Safety Code (Chapter 10, Section 10.2.3): Approved for project boundary walls in high-risk zones.

• NFPA 5000 Building Construction and Safety Code: Fully compliant.

Technical Product Specifications

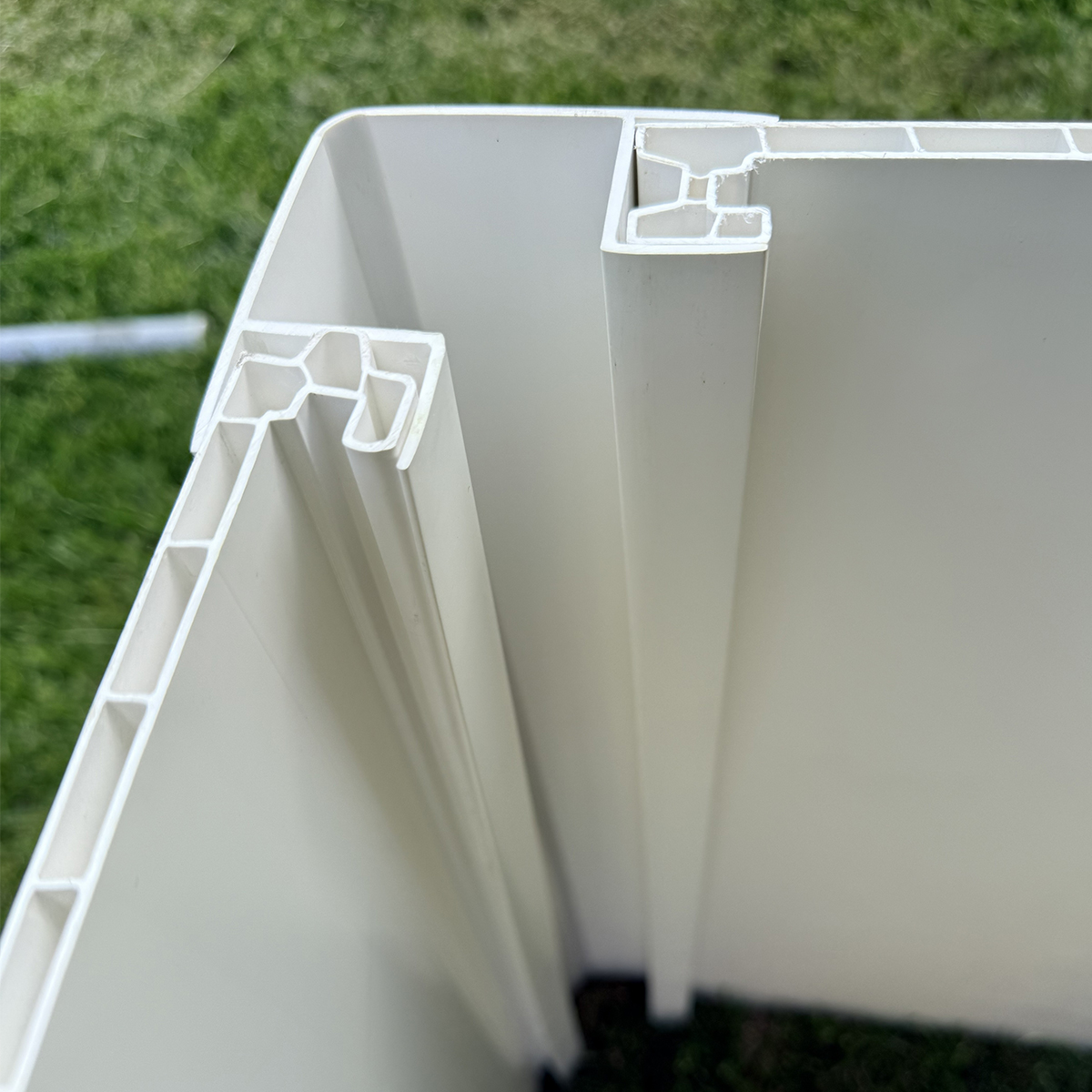

Advanced Multi-Chamber Structure & 29mm Thickness ensures exceptional wind load resistance for high-footfall urban environments.

Commercial & Selling Advantages for U.S. Contractors

1. Seamless Regulatory Approval & Zero Liability

Urban construction sites in major U.S. metro areas like New York, Los Angeles, Chicago, and Houston face aggressive safety inspections. Deploying an ASTM E84 Class A certified hoarding fence eliminates code enforcement friction, simplifies local permit approvals, and drastically lowers project liability insurance premiums.

2. High-End Corporate Branding & Marketing Ready

Unlike ugly, splintered plywood fences that rot and require constant maintenance, our panels boast a bright, architectural high-gloss white surface. The perfectly flat face acts as a massive premium billboard, allowing developers to apply high-resolution vinyl wraps for project advertising, pre-leasing announcements, and corporate branding.

3. Ultimate Durability & Extreme Weather Resistance

Specially formulated with advanced UV stabilizers and high impact-resistance compounds, these uPVC panels will not warp, fade, corrode, or degrade under direct sunlight or heavy snow. With a solid internal multi-chamber structure, they provide exceptional wind-load resistance for both open-terrain and high-rise metropolitan wind tunnels.

4. Unmatched ROI: 100% Reusable & Sustainable

Our uPVC modular interlocking panels are incredibly lightweight, fast to install, easy to pressure-wash, and 100% reusable across dozens of project lifecycles. Lower labor costs, zero waste disposal fees, and a vastly optimized Total Cost of Ownership (TCO) contribute directly to LEED green building credits.

Complete Modular System Components Available

We offer a fully integrated system designed for instant deployment on standard U.S. construction grids:

• Interlocking uPVC Panels (750mm x 29.2mm)

• Top & Bottom U-Channels (for clean horizontal tracking)

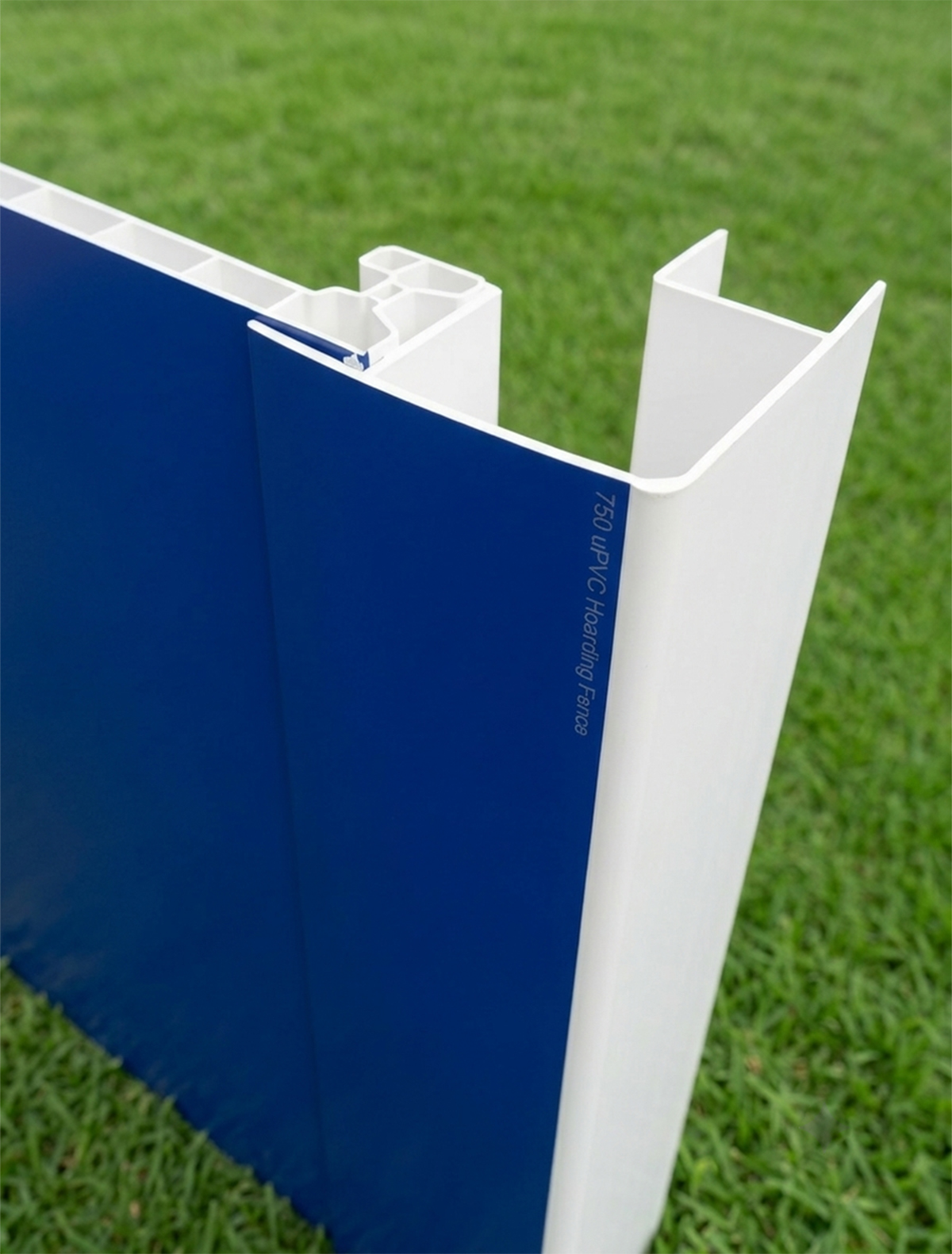

• Heavy-Duty H-Posts (for wind-stabilized straight joins)

• 90-Degree Corner Profiles (for flexible boundary turns)
